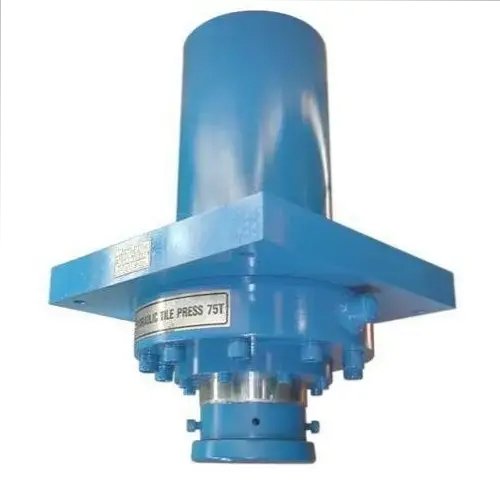

1. Structural Mechanics of Hydraulic Actuators

Hydraulic cylinders operate under high pressures (commonly 160 to 350 Bar) to generate high forces. Because hydraulic fluid is virtually incompressible, these systems provide precise position and speed control. Standard construction types include welded body cylinders (compact, ideal for mobile machinery) and tie-rod cylinders (bolted design, standardized for industrial plant machinery). The barrel is typically manufactured from cold-drawn, honed carbon steel tubes to ensure minimal bore friction and high tensile strength.

2. Calculating Piston Rod Buckling (Euler's Formula)

When a cylinder is subjected to compressive loads during extension, the piston rod acts as a column and is prone to buckling. The maximum safe load before buckling is calculated using Euler's column formula:

P_cr = (π² × E × I) / (L_k)²

Where P_cr is the critical buckling load, E is the modulus of elasticity of the rod material (typically steel), I is the area moment of inertia of the rod cross-section, and L_k is the effective buckling length (determined by the mounting style). Clevis or trunnion mounts increase the effective length, requiring a larger rod diameter compared to rigid flange mounts to ensure safety in heavy-duty machinery.

3. High-Pressure Sealing Systems

To maintain pressure integrity, hydraulic cylinders utilize multi-part seal configurations. A typical system includes a primary U-cup rod seal to contain fluid, a secondary buffer seal to absorb pressure spikes, and guide strips (wear bands) made of bronze-filled PTFE or phenolic resins to prevent metal-to-metal contact under high radial loads. Heavy-duty wipers prevent external contaminants from entering the system during the retraction stroke.
