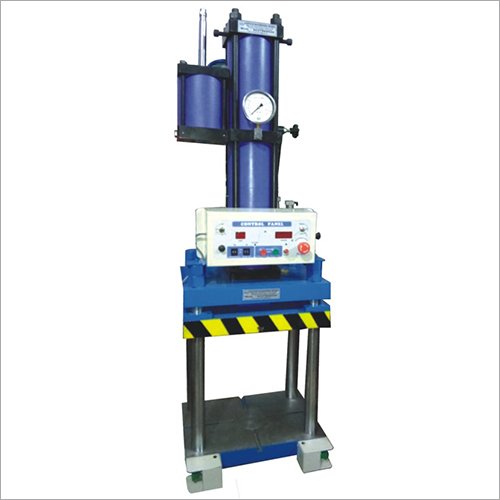

Hydropneumatic Press Manufacturer & Supplier in India

1. Combining Pneumatic Speed with Hydraulic Force

Hydropneumatic presses utilize compressed air as their primary energy source, combined with an internal hydraulic oil circuit to multiply the output force. The press stroke is divided into two phases: a fast approach stroke (driven by low-pressure air for rapid positioning) and a power stroke (activated when the tooling meets resistance, using air pressure to drive a hydraulic piston for high force). This combination provides cycle speeds and energy savings compared to conventional hydraulic presses.

2. The Intensification Ratio Principle

The force multiplication in a hydropneumatic cylinder is achieved by the ratio of the surface areas of the large air piston and the smaller hydraulic plunger. The pressure intensification formula is:

P_hyd = P_air × (A_piston / a_plunger)

Where P_hyd is the intensified hydraulic pressure, P_air is the supply air pressure, A_piston is the area of the air piston, and a_plunger is the area of the hydraulic plunger. By applying a standard 6 Bar air supply, an intensification ratio of 40:1 yields an oil pressure of 240 Bar, generating up to 50 Tons of force at the press ram without requiring an external hydraulic power pack.

3. Control Circuitry and Safety Standards

Modern industrial presses require compliance with machinery safety guidelines. Hydropneumatic presses incorporate mechanical two-hand safety valves or electronic control units that require simultaneous button activation to initiate the power stroke. Press monitoring systems with analog force transducers and displacement encoders can be integrated to track the force-travel profile of each stroke for quality control in assembly lines.
