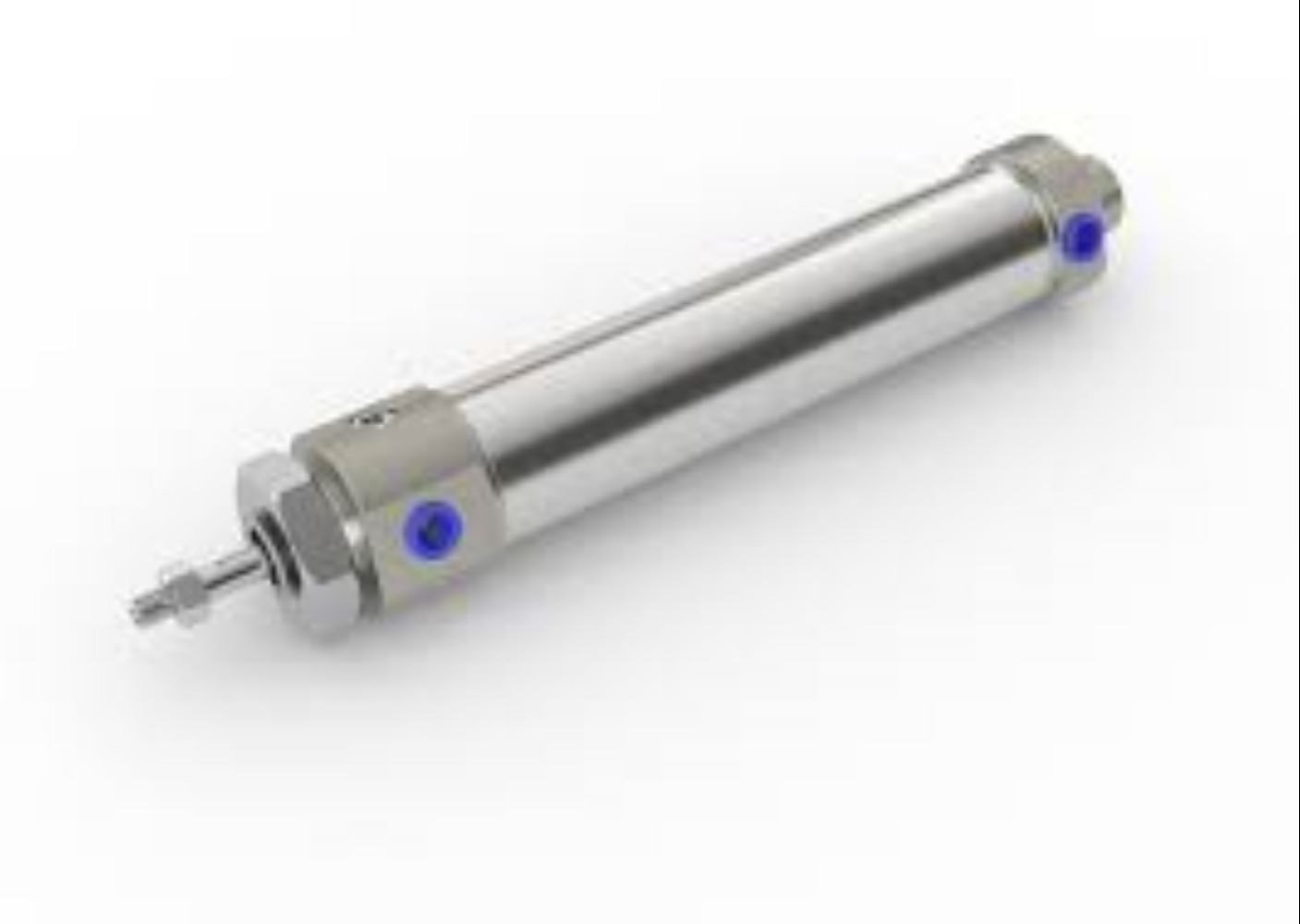

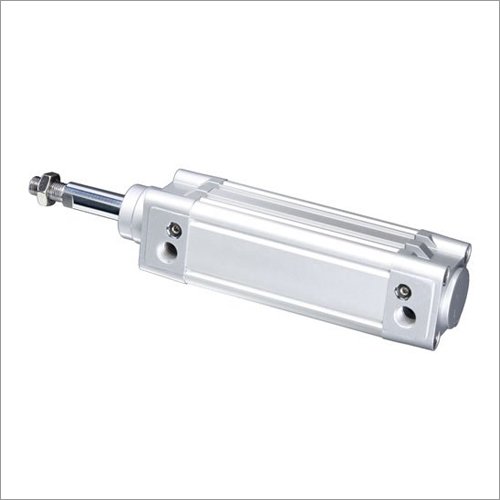

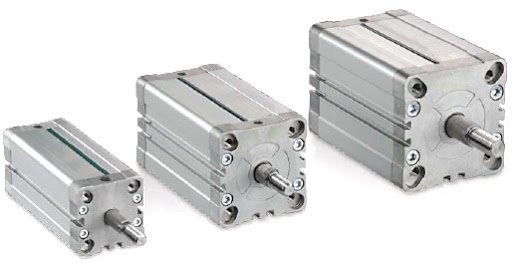

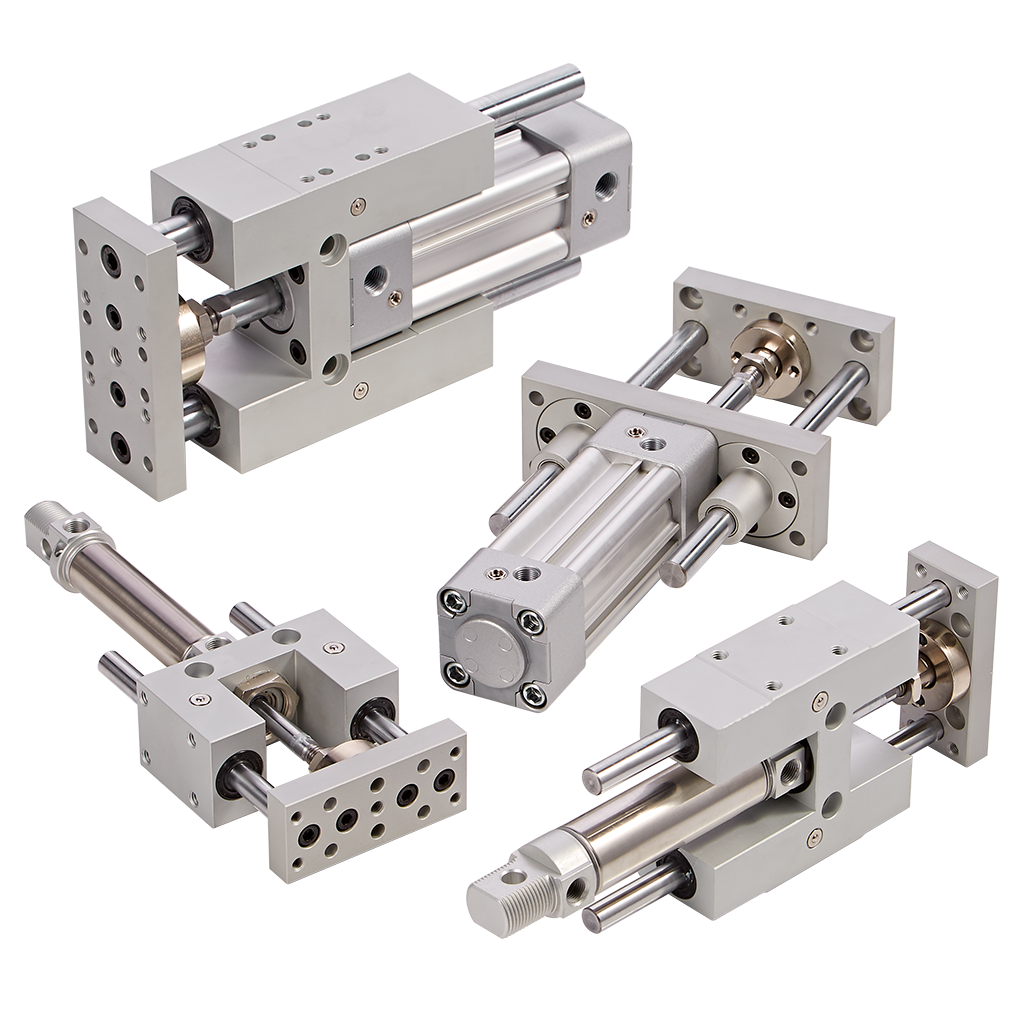

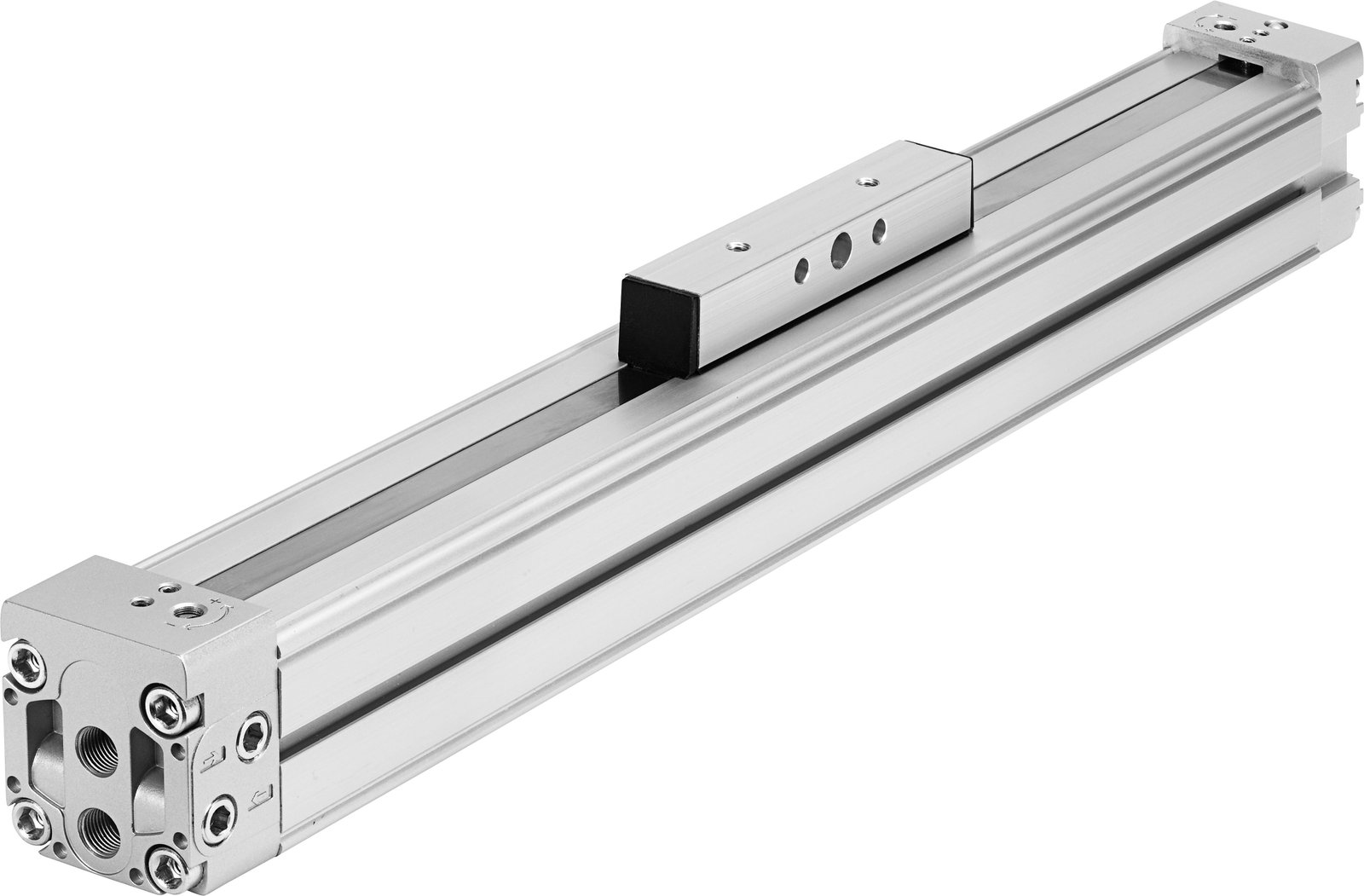

1. Operating Principles of Pneumatic Actuators

Pneumatic cylinders are mechanical devices that convert the potential energy of compressed air into a reciprocating linear force. In a double-acting configuration, compressed air is alternately supplied to the cap end and the rod end of the cylinder, enabling powered extension and retraction. For single-acting designs, a mechanical spring is integrated to return the piston to its default position when the air pressure is vented, which is ideal for clamp or safety fail-safe applications.

2. Calculating Piston Output Force

The theoretical output force of a pneumatic cylinder depends on the working air pressure and the effective piston area. The formula used is:

F = P × A

Where F represents force (in Newtons), P represents the operating pressure (in Pascals), and A is the effective piston area (in square meters). Note that on the retraction stroke, the rod cross-sectional area must be subtracted from the piston area, reducing the available force. For real-world B2B machinery design, a load factor of 50% to 70% is applied to account for internal friction, velocity requirements, and pressure drops across pneumatic valves.

3. Sealing Systems and Material Science

The durability of pneumatic actuators depends on the seal selection. Standard cylinders use Nitrile Butadiene Rubber (NBR) seals, which operate efficiently from -20°C to 80°C. For high-temperature zones (up to 150°C) such as foundries or steel plants, Fluorocarbon (FKM / Viton) seals are specified. For high-speed applications, low-friction Polyurethane (PU) seals are combined with PTFE wear rings to prevent stick-slip effects and ensure smooth positioning in pneumatic automation systems.
