Flush sensors have a metal shielding sleeve around the sensor tip, allowing them to be mounted flush with surrounding metal without false triggering, though this limits their sensing distance. Non-flush sensors lack this sleeve, require a metal-free clearance zone around the tip, but provide up to 50% longer sensing ranges.

NAMUR sensors are 2-wire devices that change their internal resistance when detecting metal. Connect the positive terminal of the sensor to terminal 1 (+) and the negative terminal to terminal 2 (-) of the KFD2 barrier. The barrier supplies 8V DC, monitors current draw (under 1.2mA for blocked, over 2.1mA for unblocked), and switches its output relays.

Connect the white TEACH-IN programming wire (Pin 5) to -U (0V) or +U (+24V) to define the limits. Position the target object at the desired near limit (zero point) and connect Pin 5 to 0V. Then, position the target at the far limit (span point) and connect Pin 5 to +24V. Disconnect the programming wire to save the settings.

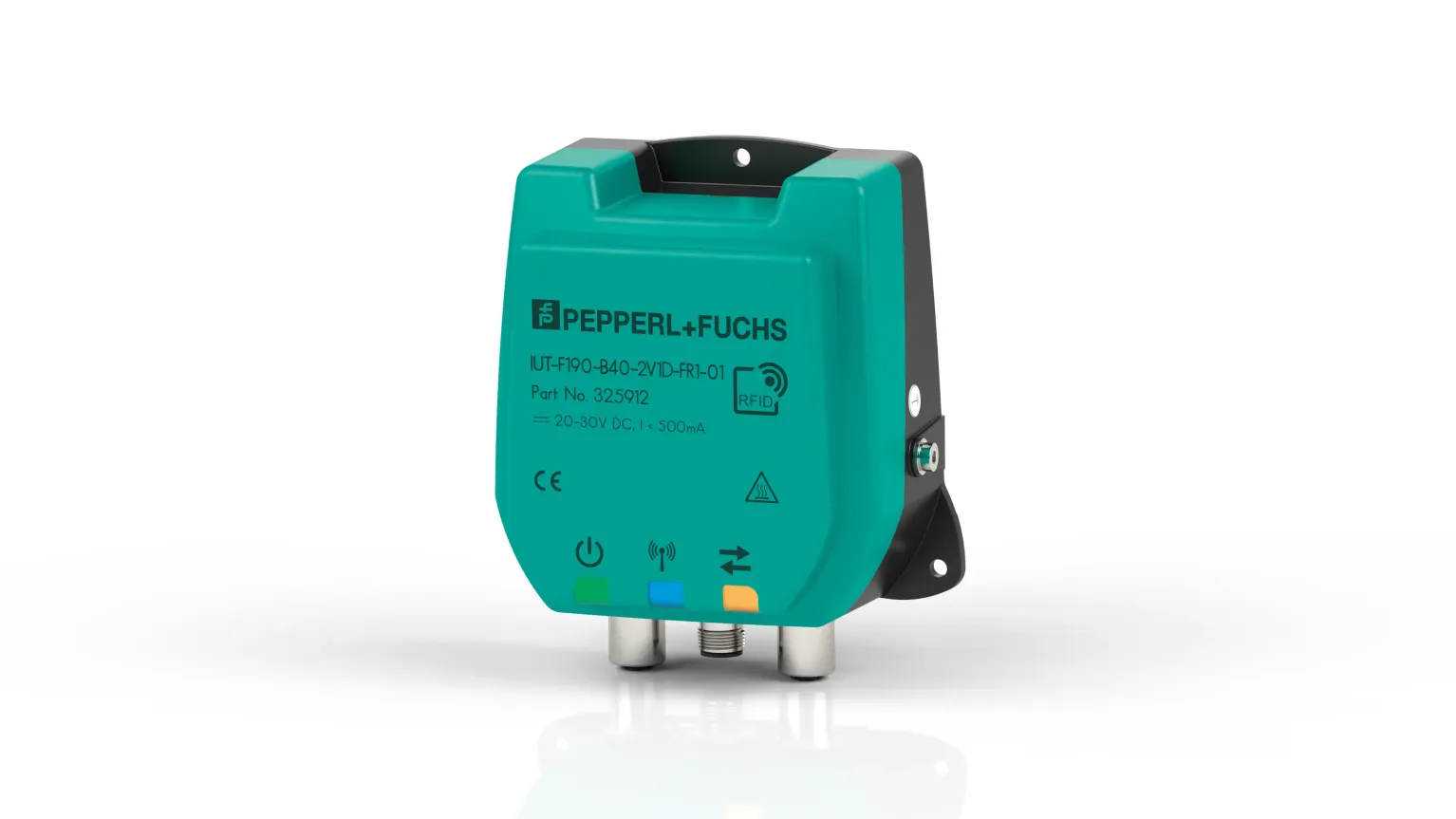

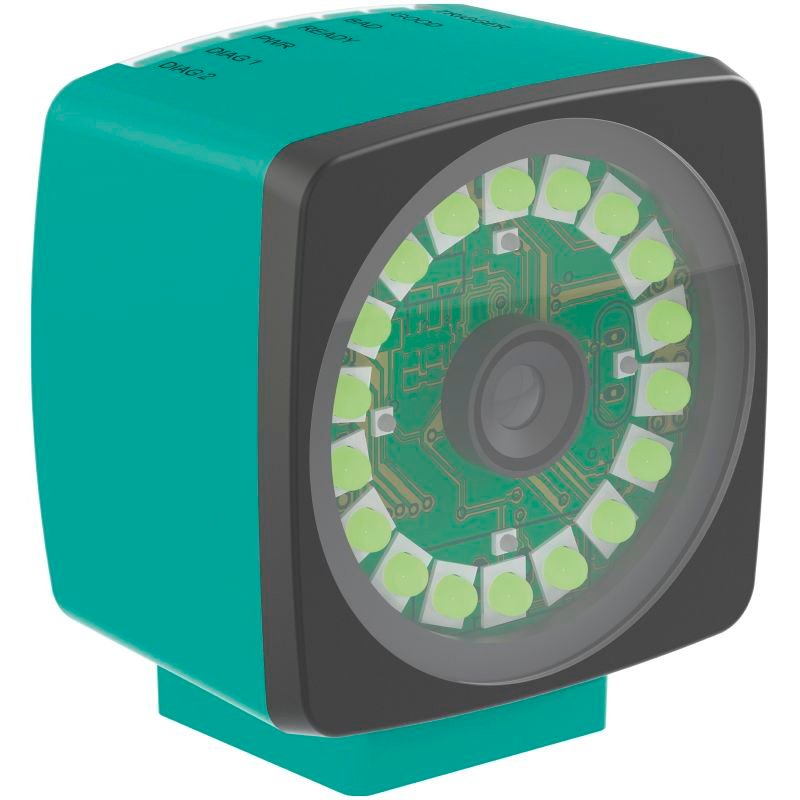

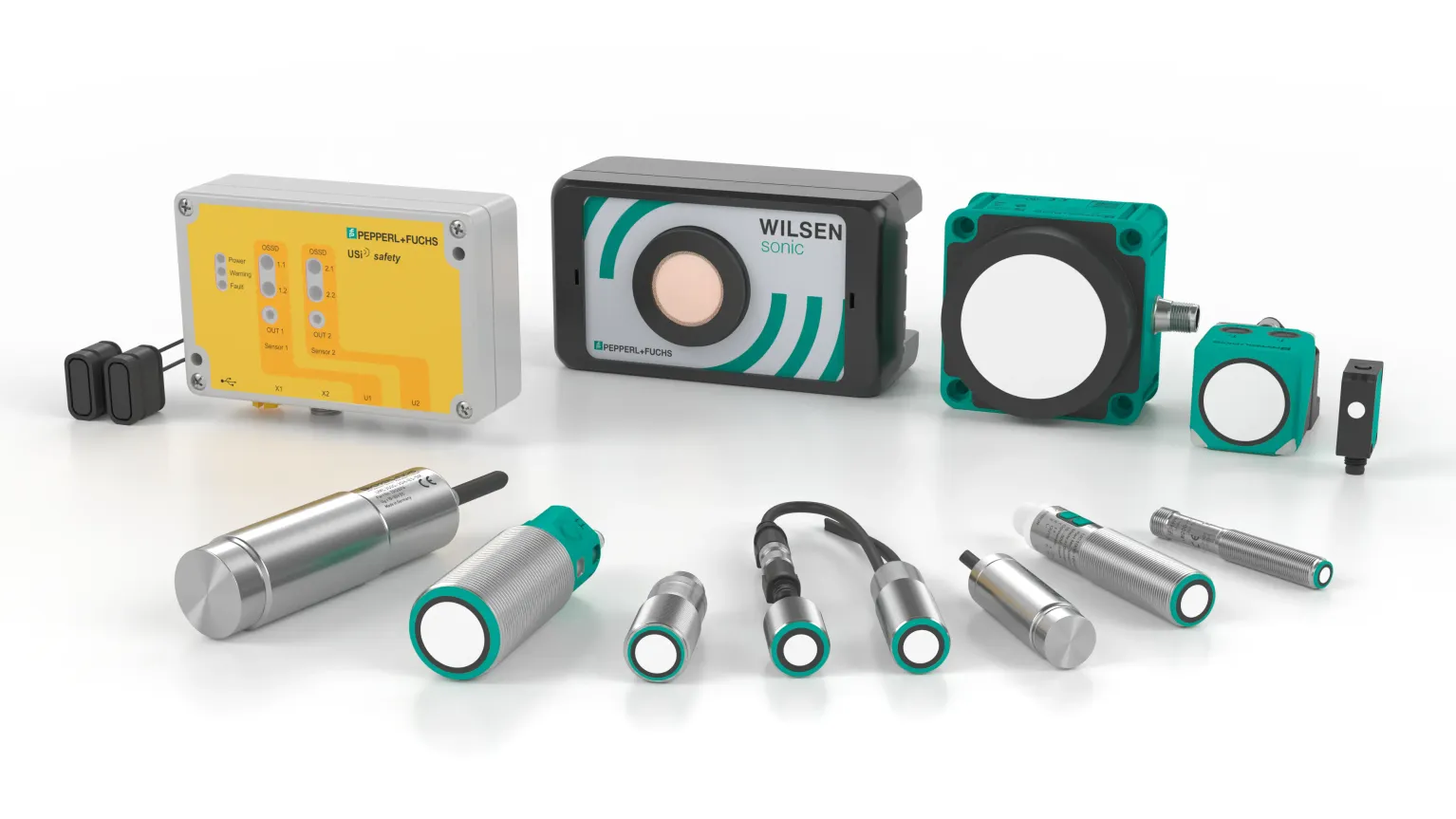

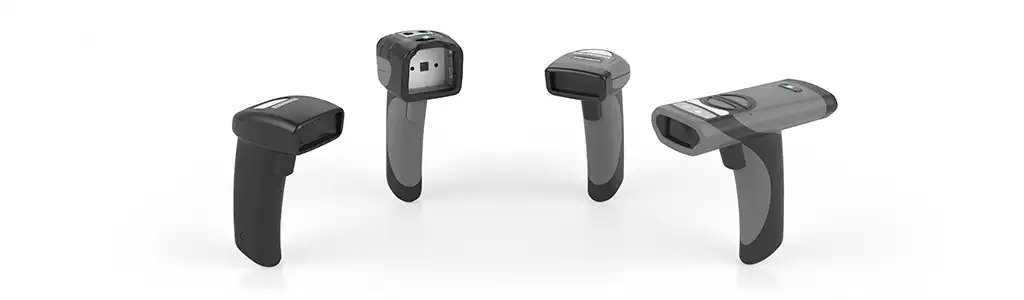

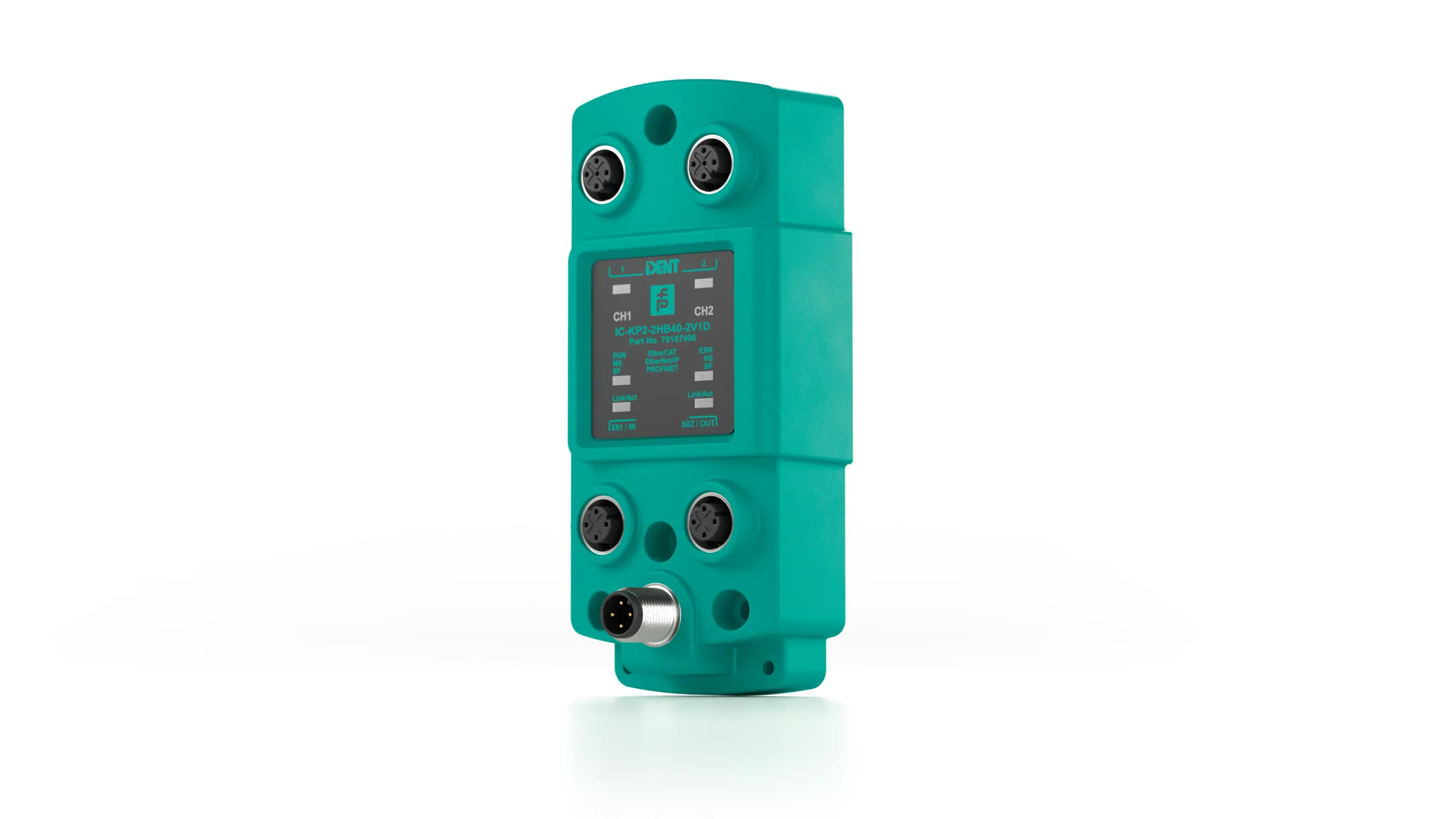

C MATIC CONTROL LLP is a leading dealer, distributor, and supplier of Pepperl+Fuchs factory and process automation products, supplying system builders, panel builders, and factories across Mumbai, Pune, Thane, Kolhapur, Nagpur, Ahmedabad, Vadodara, Surat, Rajkot, Chennai, Coimbatore, Bengaluru, Hyderabad, Delhi, Noida, Gurgaon, Kolkata, and PAN India. We supply a complete range of Pepperl+Fuchs components, including inductive proximity sensors, photoelectric sensors, capacitive sensors, ultrasonic sensors, and rotary encoders. Our process automation product range features intrinsic safety barriers, galvanic isolators, Zener barriers, and purge control systems for hazardous locations, along with RFID systems and barcode readers. Our technical team assists with selecting the correct sensor and safety barrier categories, ensuring compliant explosive-proof loop designs nationwide.
