Pneumatic Control Panels Manufacturer & Supplier in India

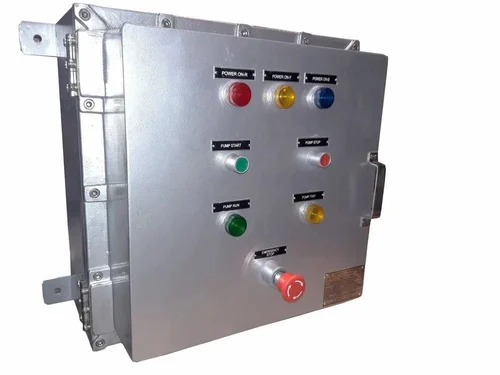

1. Industrial Cabinet Layout and IP Ratings

Pneumatic control panels protect solenoid valves, regulators, and PLC controllers from dust, moisture, and chemical exposure. Enclosures are selected based on the operating environment: Mild Steel (MS) with powder coating for standard factory plants, or Stainless Steel (SS304/SS316) for food processing, pharmaceutical, or marine installations where washdown cleaning is required. Cabinets are designed to meet IP55, IP65, or IP66 standards to ensure environmental protection.

2. Solenoid Valve Manifolds and Air Preparation

Inside the panel, solenoid valves are mounted on centralized manifold blocks. This configuration reduces tubing connections and potential leak points. A high-efficiency Air Preparation Unit (FRL - Filter, Regulator, Lubricator) is installed at the panel inlet to remove particulate matter, coalescing moisture, and regulate air pressure to ensure reliable operation of downstream pneumatic actuators and solenoid valves.

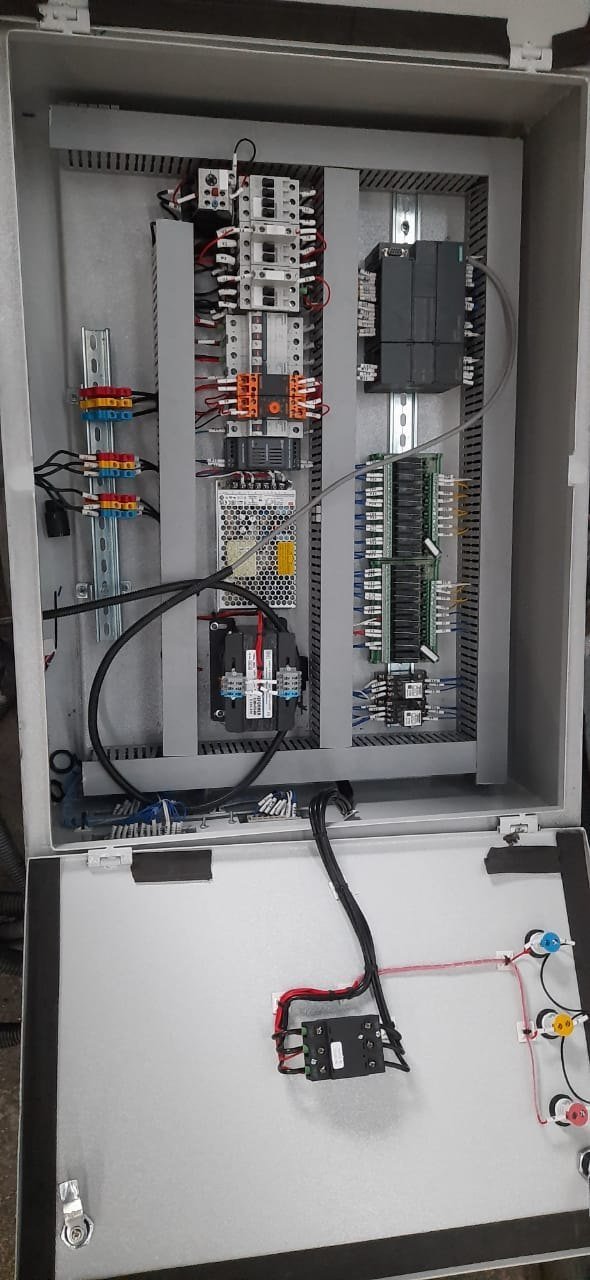

3. Electro-Pneumatic Integration & PLC Communication

Pneumatic panels bridge electrical controls and pneumatic movement. Solenoid valves are wired to intermediate terminal blocks, safety relays, or directly to PLC digital output cards. Modern B2B industrial systems utilize fieldbus protocols (such as PROFINET, EtherCAT, or Modbus TCP) integrated onto the valve manifold, reducing wiring complexity by transmitting diagnostic and control signals over a single Ethernet cable.
